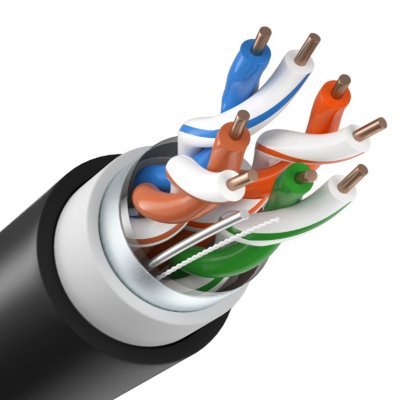

UTP CAT5E

CAT5E OUTDOOR DIRECT BURIAL BULK CABLE
23AWG 4 Twisted Pairs PE&PVC FRPE HDPE Solid Bare Copper
This specification covers design requirements and performance standards for procurement.of UTP
CAT 5E (Unshiel Twisted Pair) direct cable. TSP brand guarantees a stable quality control system for us
from the factory. Cable products pass several programs including ISO 9001, ISO 14001 and ROHS

• Our shielded Cat5E outdoor waterproof direct burial ethernet
• network cable allows you to extend your internet connection
• even in the harshest environments. Its weatherproof double
• outer jacket will enable you to bury your lines underground while
• protecting your wires from various elements.

• 1000BASE-T (IEEE802.3ab Gigabit Ethernet)
• 100BASE-TX (IEEE802.3u Fast Ethernet)
• 10BASE-T(IEEE802.3Ethernet)
• 52/155/622 Mbps and 1.2Gbps ATM
• 10GBASE-T(IEEE 802.3an 10Gigabit Ethernet 55m)
• POE,POE+(IEEE802.3af, IEEE802.3at) TP-PMD, TPDDI, ISDN, VOIP,
• Analog & Digital Voice, Digital & Analog Video
• 4/16Mbps Token Ring 2.5G BASE-T, 5G BASE-T (IEEE802.3bz)

• ANSI/TIA-568-C.2 Category 5E, ANSI-TIA/EIA-568-B.2 Category 5E
• ISO/IEC 11801:2002 Class D, ISO/IEC 11801:2017 Class D
• EN50173 Category 5E, EN50288-3-1, EN50173-1 Category 5e
• EN 50173-1 , EN50288-3-1, EN 50288-6-1
• IEC61156-5, NEC800 , UL444
• NEMAWC63.1 ICEAS-90-661 Category 5E, NEMA WC 63.1., ASTM D 4566-9
• ANSI/TIA-568.2-D Category 5E
• RoHS Compliant
