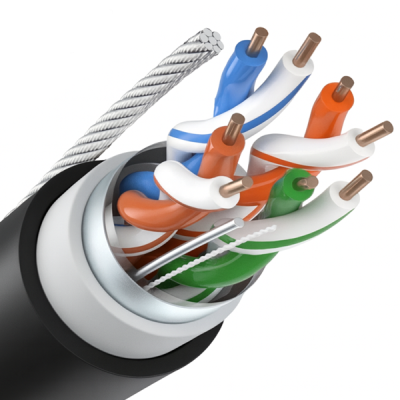

UTP CAT6 Outdoor Drop Wire

CAT6 OUTDOOR DIRECT BURIAL BULK CABLE
CAT6 UTP Cable Outdoor Drop Wire Double Jacket
This specification covers design requirements and performance standards for procurement.
of UTP CAT 6 (Unshiel Twisted Pair) direct cable. TSP brand guarantees a stable quality control
system for us from the factory. Cable products pass several programs including ISO 9001, ISO
14001 and ROHS.

PRODUCT DESCRIPTION

Our shielded Cat6 outdoor waterproof direct burial ethernet
network cable allows you to extend your internet connection
even in the harshest environments. Its weatherproof double
outer jacket will enable you to bury your lines underground while
protecting your wires from various elements.

APPLICATION

• 1000BASE-T (IEEE802.3ab Gigabit Ethernet)
• 100BASE-TX (IEEE802.3u Fast Ethernet)
• 10BASE-T(IEEE802.3Ethernet)
• 52/155/622 Mbps and 1.2Gbps ATM
• 10GBASE-T(IEEE 802.3an 10Gigabit Ethernet 55m)
• POE,POE+(IEEE802.3af, IEEE802.3at) TP-PMD, TPDDI, ISDN, VOIP,
• Analog & Digital Voice, Digital & Analog Video
• 4/16Mbps Token Ring 2.5G BASE-T, 5G BASE-T (IEEE802.3bz)

• ANSI/TIA-568-C.2 Category 6, ANSI-TIA/EIA-568-B.2 Category 6, ANSI-TIA/EIA-568-B.2-1, ANSI/TIA-568.2-D
• TIA/EIA-568 A/B Category 6, TIA/EIA Category 6
• ISO/IEC11801:2017, ISO/IEC 11801:2002 Class E
• EN50173 Category 6, EN 50173-1 , EN50288-3-1, EN 50288-6-1
• IEC61156-5, NEC800 , UL444
• NEMA MC63.1, NEMAWC63.1 ICEAS-90-661 Category 6
• ICEA S-102-700 Cateory 6
• RoHS Compliant
